UR3e
Ultra-lightweight, compact cobot

The UR3e is the smallest industrial collaborative robot arm in our portfolio. Benefit from its compact form when automating processes in tight workspaces, such as on bench-tops or within production machinery.

Reach
500 mm / 19.7 in
Payload
3 kg / 6.6 lbs
Footprint
11.2 kg / 24.7 lbs
Weight
Ø 128 mm
Order Now

Down to the smallest detail

Due to its small size, the UR3e is the ideal definition of a collaborative, industrial robot. Designed to optimize efficiency in confined workspaces, the UR3e offers unmatched flexibility and precision. While the cobot can be mounted on a table working side-by-side with employees, it can also be integrated within a separate workstation for solutions including picking, assembling, and placing parts.With its small footprint and lightweight design, the UR3e seamlessly integrates into any production environment, complementing human workers and maximizing productivity. This cobot is equipped with cutting-edge safety features, ensuring safe collaboration between humans and machines.Enhance your operations, improve quality, and stay ahead of the competition with this compact automation solution.

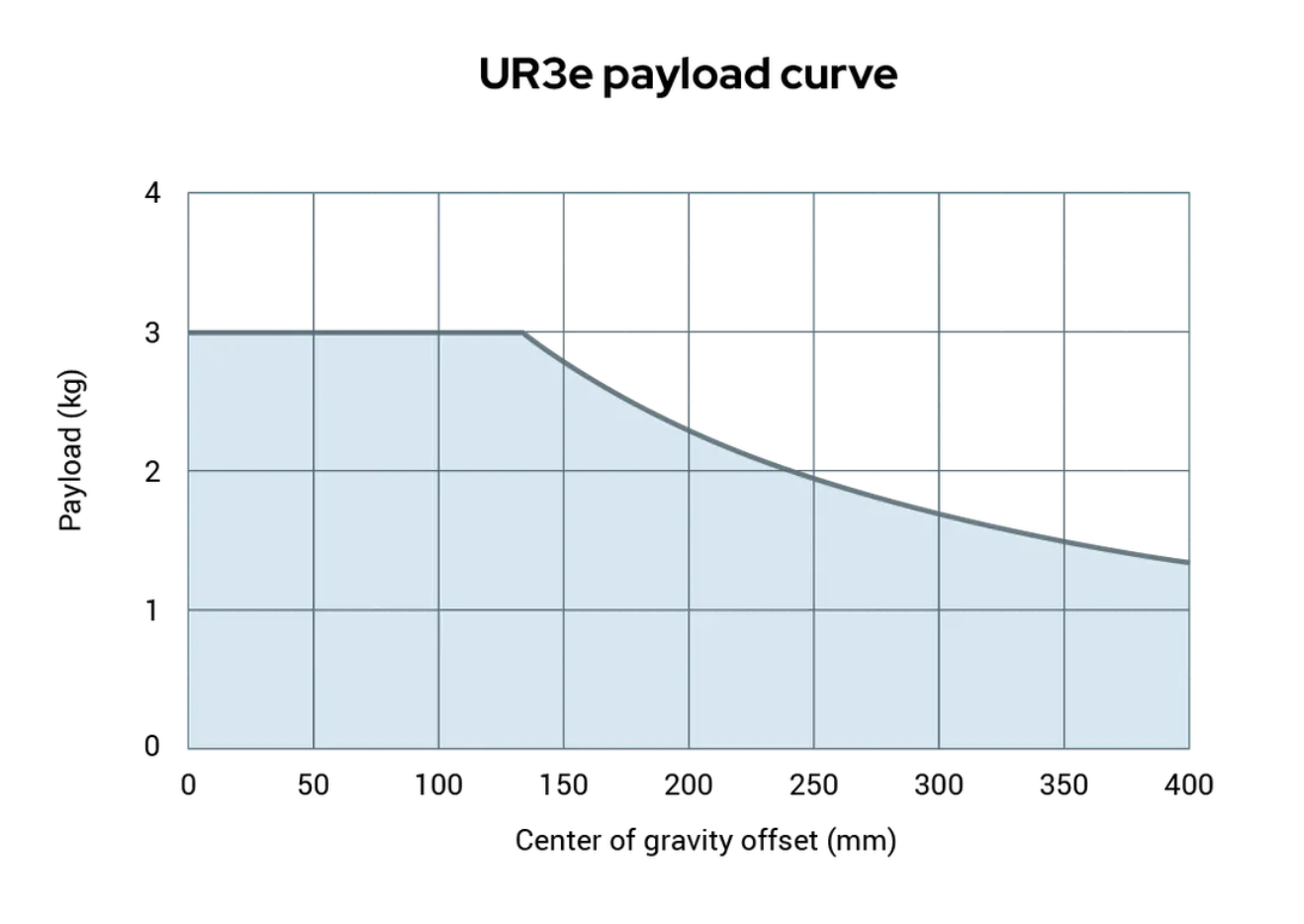

UR3e payload curve

True payload performance

Future-proof your facility with a cobot which enables you to grow with your tasks. When required to lift heavy objects over the maximum distance, do not limit yourself by the way that your end-effector is mounted. If the objects require a change of how they are being lifted, resulting a shift in the center of gravity, the UR3e will support you in this change.

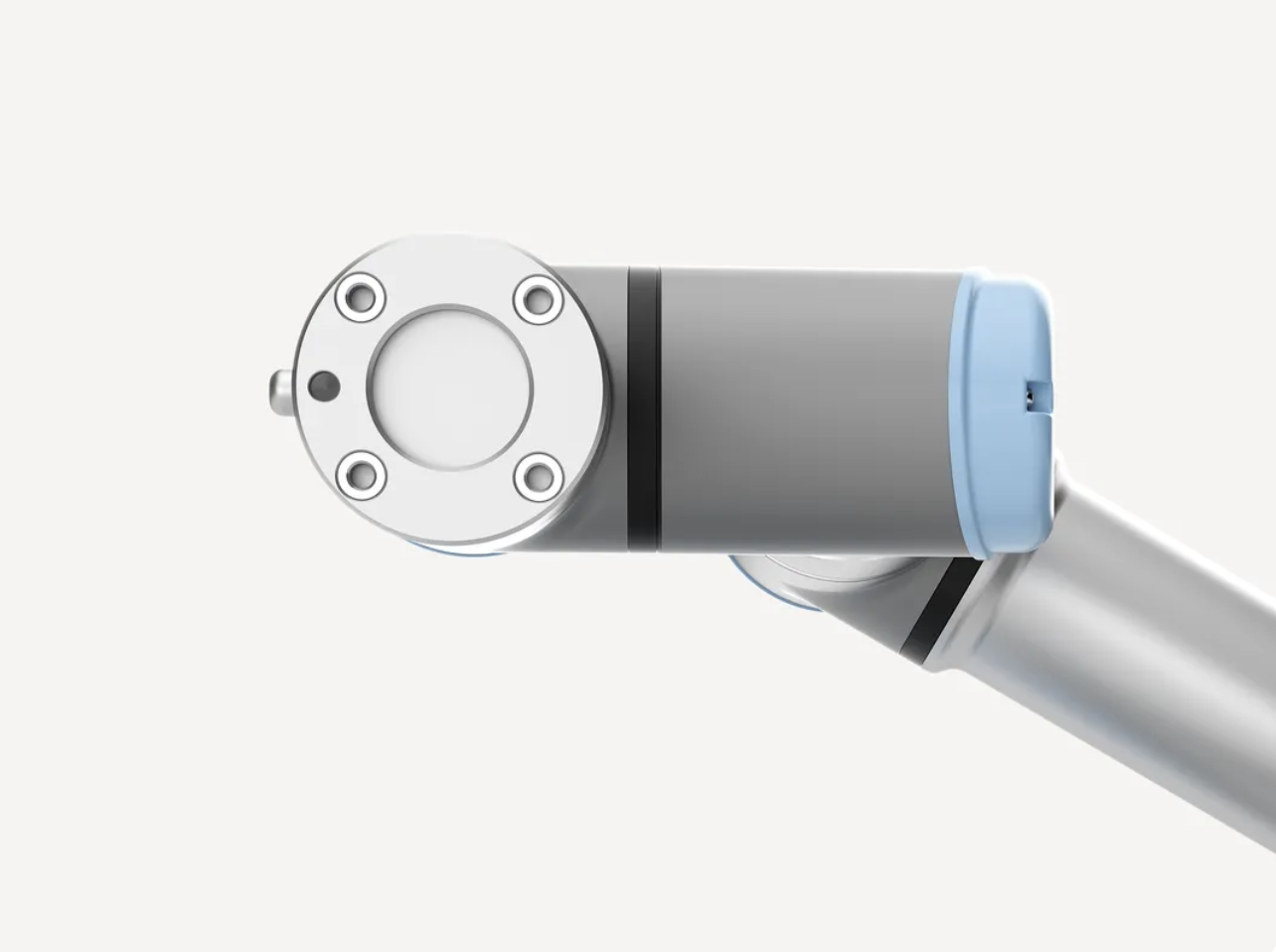

Infinite rotation

In order to support automating screw driving applications, the UR3e is equipped with an initiate rotating end joint at the tool flange. This feature also enables to directly attach polishing tools or others to the cobot, simplifying the programming and speed up installation setup.
